How To Use USB-C Input/Output Follow

USB-C PORTS

Left USB-C port: 60W

Right USB-C port: 100W Max

Short press the USB-C output button to activate or disable the output of the USB-C ports.

Note: make sure the Omni 20 C is powered on before plugging in your device. Otherwise, your device will recharge the Omni 20 C.

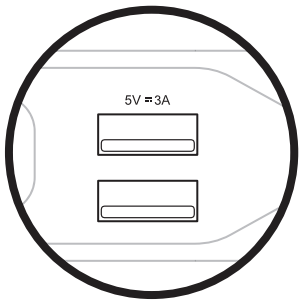

USB-A PORTS

USB Port 1: 5V/3A, USB Port 2: 5V/3A
Combined USB-A ports max output: 5V/5A

Short press HUB button to switch to USB-A fast charging mode.



HOW TO RECHARGE THE OMNI 20 C

USB-C port max input: 45W
Fully recharge in under 3 hours

The Omni 20-C can be recharged from most USB-C chargers from either port. Simply plug your charger into the Omnicharge, and check the input wattage to see if it is receiving a charge.

If your Omnicharge is not recharging, first try to replug the USB-C cable. If this does not work try to turn off the Omnicharge before plugging in the charger. If the Omnicharge is turned off and charging, it will show a battery icon on the screen. You can then turn on the Omnicharge again if you wish to use it with pass-through charging.
