How To Use USB-C Input/Output Follow

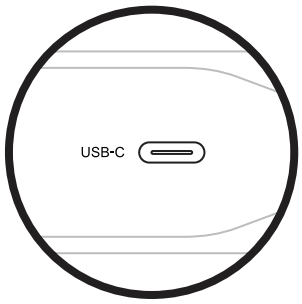

Note: USB-C Input/Output is only available on the latest Omni 20+. The regular Omni 20 from 2018 and older does not come with a USB-C port.

USB-C port max output: 60W

The USB-C port is on by default. You do not need to press any buttons to activate.

Note: Make sure the Omni 20+ is powered on before plugging in your device and make sure you plug your USB-C cable into the Omnicharge before plugging it into your device. Otherwise, your device might recharge the Omnicharge.





Recharging from the USB-C port

USB-C port max input: 60W
Fully recharge in under 3 hours

The Omni 20+ can be recharged from most USB-C chargers. Simply plug your charger into the Omnicharge, and check the input wattage to see if it is receiving a charge.

If your Omnicharge is not recharging, first try to replug the USB-C cable. If this does not work try to turn off the Omnicharge before plugging in the charger. If the Omnicharge is turned off and charging, it will show a battery icon on the screen. You can then turn on the Omnicharge again if you wish to use it with pass-through charging.
